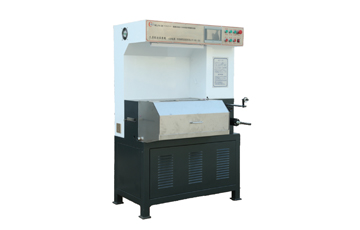

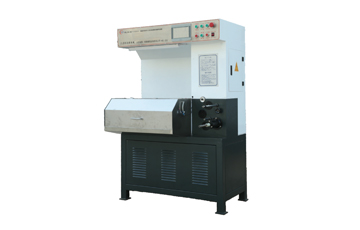

Model 19-45 basic parameters:equipment length 1200mm width 1000mm height 1690mm This equipment adopts single frequency conversion single motor design Main motor 2.2 kW and 3.0 kW Pulling passes are 19 The maximum speed of factory design is 800 meters per minute It is recommended that the most reasonable range of pulling:the inlet line is 0.3mm or less,and the outlet line is 0.07-0.04mm suit- able for drawing,stainless steel series,copper wire,pure nickel,all kinds of alloy wire.
NO. | Name | Reference value |
1 | Power source | AC380V 50Hz |
2 | Main motor power | 2.2KW/3.0KW |
3 | Power of winding motor | 100W |
4 | Maximum wire feed diameter | 0.3mm |
5 | Minimum wire diameter | 0.040mm |
6 | Number of pull-outs | 19 courses |
7 | Wire Rowing Procedure | 50mm ——260mm |
8 | Maximum exit speed | 800m/min |
9 | External Dimensions | 1200x1000x1690(mm) |
