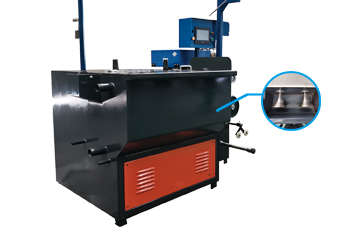

Model RD-18D basic parameters:Tower wheel arrangement is parallel to two tower wheels Drawing pass is 18 The equipment is 1700mm long 1075mm high 965mm This equipment adopts dual frequency conversion dual motor design Main motor 3.0 KW Low-speed motor,take-up motor 1.1
kW The most reasonable pulling range of this equipment design:0.6mm or less in the outlet line The maximum speed of the factory design is 600 meters per minute Suitable for drawing stainless steel wire series Copper wire All kinds of alloy wireof alloy wire.
NO. | Name | Reference value |
| 1 | Voltage | 380V |
2 | Drawing speed | 600m/min |
3 | Number of pull-outs | 18 courses |
4 | Maximum inlet diameter | 0.6 mm以下 |
5 | Diameter of finished wire drawing | 0.25 mm以下 |
6 | External Dimensions | 1700x1075×965(mm) |
