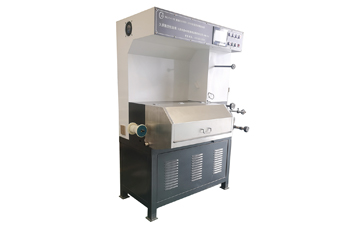

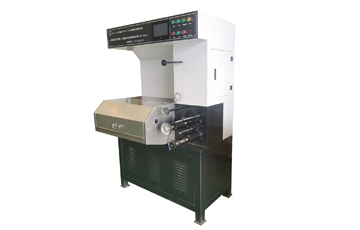

Model 14-30 Basic parameters:equipment length 1100mm width 840mm height 1690mm The equip- ment adopts single frequency conversion single motor design Motor 1.5 kW Drawing passes are 14 Facto- ry design maximum speed 1000 meters per minute This equipment is a traditional model Durable leather and high cost performance Recommended pulling the most reasonable range:outlet 0.025mm—0.05mm At present,the materials that have been drawn are:stainless steel all series,copper wire,pure nickel wire.
NO. | Name | Reference value |
| Power source | AC380V 50Hz |
2 | Main motor power | 1.5KW |
3 | Power of winding motor | 80W |
4 | Maximum wire feed diameter | 0.1mm |
5 | Minimum wire diameter | 0.03mm |
6 | Number of pull-outs | 14 courses |
7 | Wire Rowing Procedure |  30mm ——260mm
|
8 | Maximum exit speed | 1000m/min |
9 | External Dimensions | 1100x840x1690(mm) |
