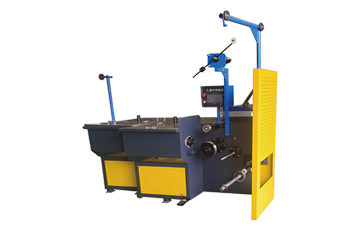

Model RD-27D basic parameters:The tower wheel arrangement is Z-type 4 tower wheel The pulling pass is 27 channels The equipment is 2330mm long 1060mm high 975mm The equipment adopts dual frequency conversion and three motor design Main motor 5.5 kW Take-up motor 1.1 kW 0.75 kW There are two ways to take up the line,which can close the l-wheel or the conical wheel with a large iron shaft Can also receive various plastic shafts One-key switching of the line The most reasonable pull-ing range of this equipmentdesign:the line is below 1.0mmand the outlet is below 0.3mmThe factory design has a maxi-mum speed of 600 meters perminute suitable for drawing purenickel wire,stainless steel wire,copper wire,and all kinds ofalloy wire.
NO. | Name | Reference value |
1 | voltage | 380V |
2 | Drawing speed | 600m/min |
3 | Number of pull-outs | 27 courses |
4 | Maximum inlet diameter | Below 1.0mm |
5 | Diameter of finished wire drawing | Below 0.3mm |
6 | External Dimensions | 2330x1060x975(mm) |
