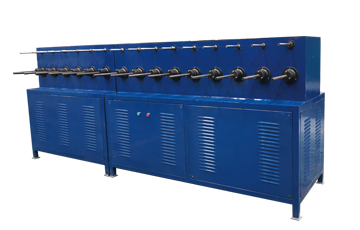

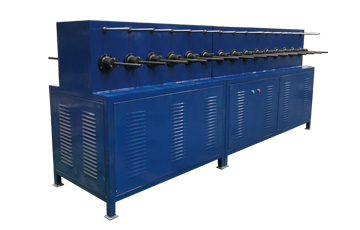

This type of winding machine is developed on the basis of the traditional 24 take-ups,the number of winding channels is 30,the winding method is rod dynamic winding,simple control,strong stability,large output,low noise and low in the actual use process.This type of winding machine adopts digital intelligent control system,integrated wind- ing of winding and winding,and can detect the winding speed,meter number and special adjustable anti-tensioning control system online to ensure that the annealing of each section of the wire is consistent when annealing and the inner and outer tightness is consistent when the wire coupon is wound on the spool,and the winding wire is automat- ically tracked,which solves the phenomenon of wire clamping and collapse during winding.
NO. | Name | Reference value |
| 1 | Power source | AC380V 50Hz |
2 | Power consumption | 1.8KW |
3 | Take-up speed | 0-5m/s |
4 | Line Stroke | 30——260mm |
5 | Detection method | Optical Detection |
6 | Number of coils | 30 |
7 | Overall dimensions | 2750x700x1600(mm) |
