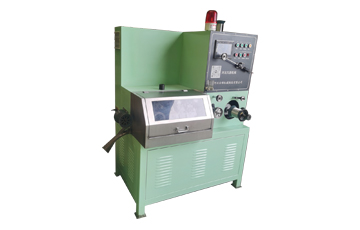

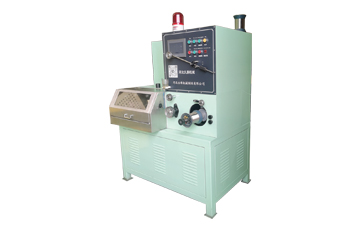

Model 14-20 intemal code(green caterpillar)Basic parameters:Equipment length 1170mm width 830mm height 1500mm This equipment adopts dual frequency conversion dual motor The main motor is 1.5 KW,the take-up motor is 200 watts The drawing pass is 14 The most suitable pulling range of this equip-
ment:0.016-0.05mm The maximum design speed is 1000 meters per minute,and the currently drawn ma-
terials are:stainless steel wire,copper wire,tungsten wire,Hastelloy wire,Monel pure nickel wire.
NO. | Name | Reference value |
1 | Power source | AC380V 50Hz |
2 | Main motor power | 1.5KW |
3 | Power of winding motor | 200W |
4 | Maximum wire feed diameter | 0.16mm |
5 | Minimum wire diameter | 0.05mm |
6 | Number of pull-outs | 14 courses |
7 | Wire Rowing Procedure | 30mm ——260mm |
8 | Maximum exit speed | 1000m/min |
9 | External Dimensions | 1170x830x1500(mm) |
