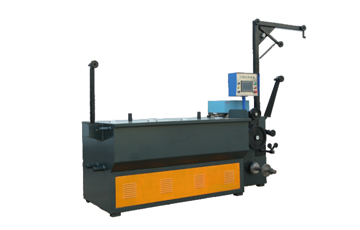

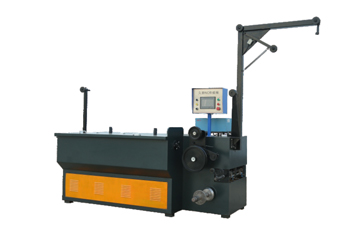

Model RD-17D basic parameters:The tower wheel arrangement is Z-type 4 tower wheel The pulling pass is 17 The equipment is 2500mm long 1075mm high 960mm The equipment adopts dual frequency conversion dual motor design Main motor 11.5 kW Take-up motor 1.5 kW Support oblique row and inline two take-up modes The most reasonable pulling range of this equipment design:2.0mm or less Outlet line 0.7mm or less Factory design maximum speed 600 meters per minute Suitable for drawing pure nickel wire,stainless steel wire,copper wire All kinds of alloy wire.
No. | Name | Reference value |
1 | Voltage | 380V |
2 | Maximum drawing speed | 600m/min |
3 | Number of pull-outs | 17 courses |
4 | Maximum inlet diameter | 2.0 mm |
5 | Diameter of finished wire drawing | 0.32mm以上 |
6 | External Dimensions | 2500x1075x960(mm |
