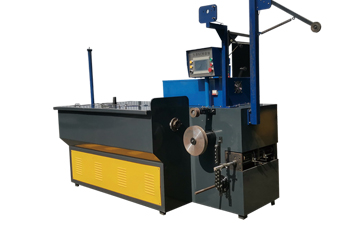

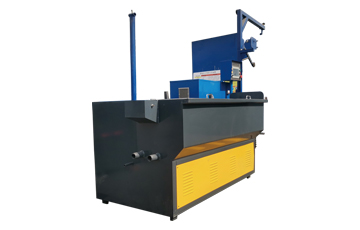

Model:RD-19D(high carbon steel wire drawing machine),basic parameters:This model is a special model,the tower wheel arrangement is flat 4 tower wheels,two active tower wheels and two passive tower wheels,the pulling pass is 19 channels,the equipment is 2480mm longx 1085mm wide x970m high,the equipment adopts dual frequency conversion dual motor design,the main motor 18 kilowatts,the take-up motor 1.5 kilowatts,support oblique row and inline two take-up modes,the
equipment design is the most reasonable.Pulling range:2.0mm or less in the inlet,0.7mm or less in the outlet,and the maximum speed of the factory design is 600 meters per minute.Suitable for
drawing:high carbon steel wire,copper wire.
NO. | Name | Reference value |
1 | Voltage | 380V |
2 | Drawing speed | 600m/min |
3 | Number of pull-outs | 19 courses |
4 | Maximum inlet diameter | 2.0 mm以下 |
5 | Diameter of finished wire drawing | 0.7 mm以下 |
6 | External Dimensions | 2480×1085×970(mm) |
