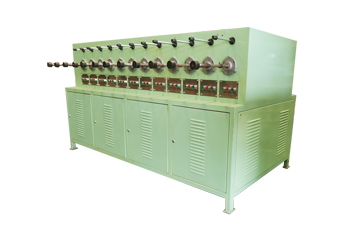

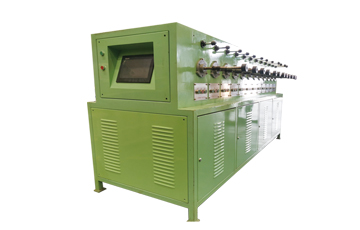

THL24-1850 winding machine:the biggest highlight of this take-up machine is single-axis single con- trol design,each take-up spool works independently (the operator can be proficient in one day),can realize the free switching of inline oblique row (to meet different customer needs),automatic adjustment of the line (the flatness of the oblique line is automatically adjusted),constant speed (consistent annealing speed, consistent tensile strength of the wire),set grammage stop,set meter number of parking,self-stop when disconnecting,and the recommended maximum take-up range value:0.015-0.09mm of various types of wireThe maximum design speed of the take-up line is 300 meters per minute.
NO. | Name | Reference value |
| 1 | Power source | AC380V 50Hz |
2 | Power consumption | 1.8KW |
3 | Maximum speed of take-up | 300m/min |
4 | Line Stroke | 30——260mm |
5 | Detection method | Optical Detection |
6 | Number of coils | 24 |
7 | Overall dimensions | 2750x700x1600(mm) |
